Description

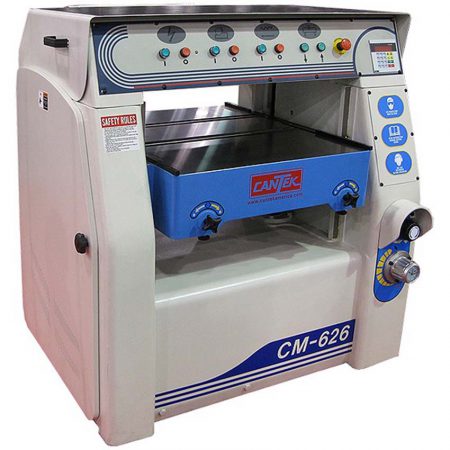

Cantek CM-626 26″ planer with spiral carbide insert knife cutterhead
Features
- Spiral cutterhead with 6 rows insert knives provides high removal, superior finish and low noise
- Solid cast iron construction
- Variable feed speed
- Drive top and bottom feed rolls
- Front & rear bed rollers easily adjusted from the front of the machine
- Power table elevation by digital thickness control
- Serrated solid infeed roll
- Section chipbreaker
- Anti-kickback fingers for added safety
- Dual heavy jack screws with slides for accuracy & rigidity
- Dust exhaust outlet (6”)
- Sound dampening machine cover
- All operations on convenient control panel
Specifications
- Maximum planing width 26″
- Maximum planing thickness 11 ¾”
- Maximum depth of cut 3/8 “
- Minimum part length 10.5″
- Table area 35″ x 27″
- Feed speeds variable 16 – 70 FPM
- Main motor 20 HP
- Feed motor 1 HP
- Table motor 1/2 HP
- Knives 30 x 12 x 1.5 qty 100
- Cutterhead 4 ¾” dia. x 5000 rpm
- Top feed rollers 3″ dia.
- Dust hood outlet 6″ dia.
- Electrics 230 or 460 or 575/3/60
- Net weight 2200 lbs.
- Shipping weight 2420 lbs.
- Shipping dimensions (LxWxH) 44”x52”x58”
- Electrical
- 230/3/60 = 60.2 Full Load Amps
- 460/3/60 = 30.2 Full Load Amps
- 575/3/60 = 24.6 Full Load Amps
