Description

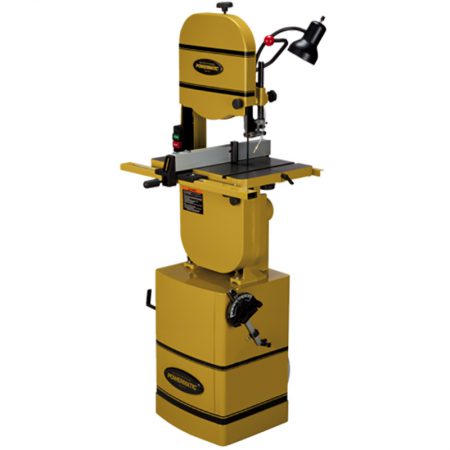

2 in 1 machine for rip and curve band sawing
Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade
Micrometric adjustment to upper guide
Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
Cast iron work table is precision ground and can tilt to 45 degrees
Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
Foot brake for quick shutdown of machine
Heavy guage steel frame ensures vibration free cutting
| Saw Wheel Diameter | 24″ |
| Tabel Size | 31-1/2″ x 23-3/4″ |
| Tilting Table | 0~45o |
| Throat Capacity | 22-7/8″ |
| Height Under The Guide | 13-3/4″ |
| Width of Saw Wheel | 2″ |
| Blade Speed | 4458 FPM |
| Blade Length | 173-5/8″ ~ 176-1/2″ |
| Blade Width | 1/4″ ~ 2″ |
| Motor | 5HP |
| Dust Hood | (2) 4″ |
