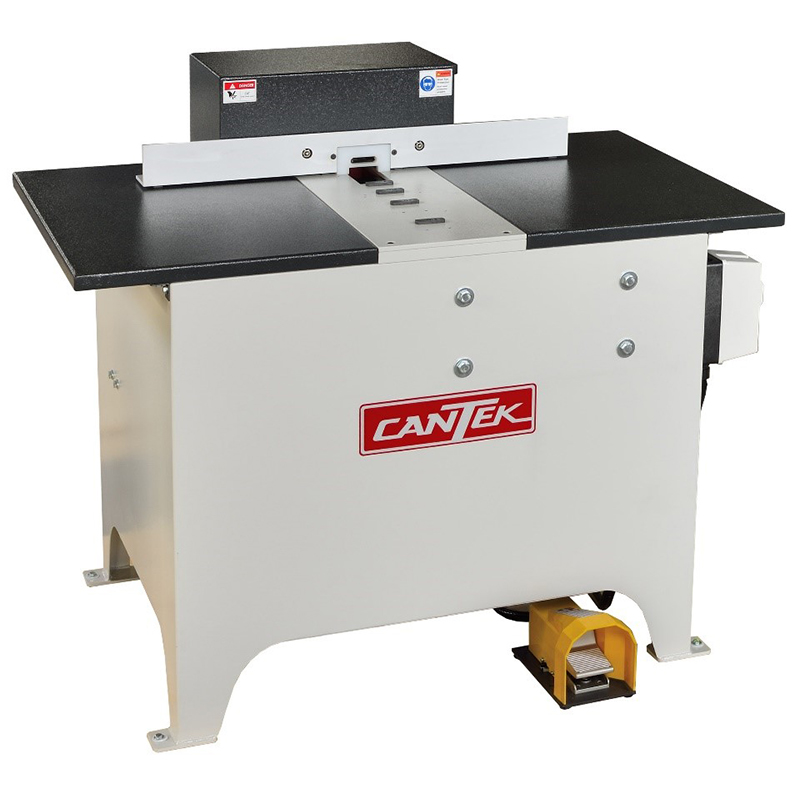

Description
FEATURES:
- Designed to notch and drill the underside of a drawer box for mounting undermount drawer slides
- Pneumatic cutter & drill stroke by foot pedal operation.
- Cutter stroke and drill speed are adjustable for optimum finish results
- Drill will automatically position for both left and right drawer notches by activating a switch in the fence
- Machine will not cycle unless a drawer is up against the switch for safe operation
- Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
- 2 ¼” (57mm) wide cutter allows for a wide range of undermount slides
- Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
- Capable of notching up to 220 drawer boxes (both left and right) per hour.
MACHINE INCLUDES:
- Solid carbide drill bit 1/4″ (6.3MM) 118o
- 10” (255mm) x 2 ¼” (57mm) insert cutter head with 70 pcs. (14x14x2.0mm)
Specifications
| Includes 2 ¼” (57mm) insert cutter |
Main cutter motor 3 HP
Notch dimensions 2 ¼” (57mm) x 0.5” high
Cutter diameter 10”
Drill diameter ¼”
Table size 49” x 22”
Table height from floor 32”
Dust port 4” (670 CFM requirement)
Compressed air required 90 – 100 PSI
Machine dimensions 48” x 37 ¾” x 39 ¾”
Machine weight 506 lbs.
