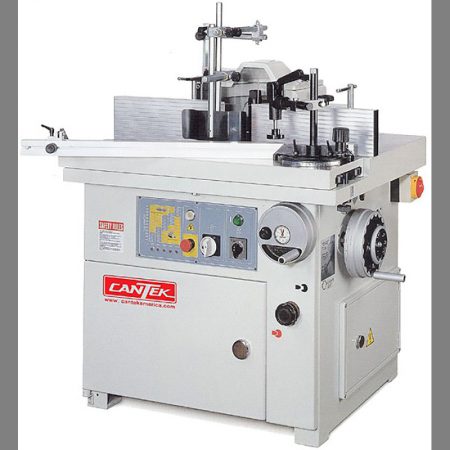

CANTEK SS512CSB Heavy Duty Production Shaper with Sliding Table & Spindle Brake
FEATURES
- Cast iron sliding table runs on ball bearing for smooth table transition
- Cast iron ground & polished table with insert rings
- Precision ground and electronically balanced spindle
- V-belt drive with 5 feed speeds is easily accessed from the front of the machine
- Electric spindle brake for added safety
- Spindle lock – with limit switch safety, machine will not start with lock engaged
- Micro spindle height adjustment with dial indicator
- Interchangeable cutter spindle
- Forward/reverse spindle rotation
- Adjustable “finger” type fence
- Independent micro-fence adjustment on both sides
- Includes the following standard equipment: 1 ¼” spindle, dust connection chute, safety guard, tenon jig, and Telemecanique magnetic controls
Specifications
Table size 31 ½” x 39.4”
Spindle speeds (5) 3000/4000/6000/8000/10000 RPM
Spindle taper 5 MT
Spindle diameter 1 ¼”
Motor 7.5 HP
Sliding table size 39.4” x 10 ¼”
Sliding table stroke 37”
Largest diameter of cutter 13 ¼”
Fence size 6” x 43”
Vertical spindle stroke 5 ½”
Useable length of spindle 5 ½” long
Electrics 230/3/60 = 22 Full Load Amps
Dust port (1) 6”
Total HP 7.5 HP
Net weight 1034 lbs.
Machine dimensions 48.4” x 39.4” x 52 ¾”
Shipping weight 1166 lbs.
Shipping dimensions 45 ¼” x 37” x 41”
