Description
DESCRIPTION

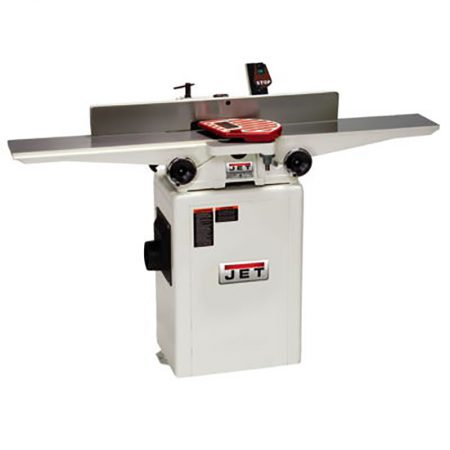

Any serious woodworker knows that square and flat stock is the key to producing fine work, so it’s time to skip the hand tools and graduate to the JJ-6HHDX 6” long bed jointer. This beast boasts a helical insert cutterhead with staggered carbide inserts yet runs quietly and smoothly. Its exclusive front-mounted table adjustment handwheels make quick, easy and accurate corrections. Extra-long heavy-duty cast iron infeed and outfeed tables with precision-machined finish allow jointing of longer boards without tipping. Best of all, it comes with JET’s industry-leading customer service professionals standing by to assist from setup to output.
FEATURES
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations
- EXCLUSIVE front-mounted table adjustment handwheels make quick, easy and accurate corrections
- Industrial push-button controls are conveniently placed for easy access
- Built-in dust chute with 4″ port connects to your collection system for efficient dust/chip disposal
- Center fence controls are conveniently mounted to allow quick adjustments
- Powerful 1HP motor easily handles the toughest jointing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
SPECIFICATIONS
- Number of Knives27
- Helical Knife Size (L x W x T) (In.)15 x 15 x 2.5
- Cutterhead Diameter (In.)2-1/2
- Cutterhead Speed (RPM)6000
- Cutting Capacity (W x D) (In.)6 x 1/2
- Table Size (L x W) (In.)56 x 7-3/8
- Table Height from Floor (In.)31-1/4
- Infeed Table Length (In.)27
- Outfeed Table Length (In.)27-3/8
- Fence Size (L x H) (In.)32-3/4 x 3-7/8
- Fence Tilt (Deg.)45 L, 45 R
- Fence Positive Stops (Deg.)45 L, 45, 90 R
- Dust Collection Minimum CFM Required (CFM)350
- Dust Port Outside Diameter (In.)4
- Motor Power (HP)1
- Motor Voltage (V)115/230
- Prewired Voltage (V)115
- Motor Phase (PH)1
- Motor Amps13/6.5
CALL FOR PRICING (978) 667-1911
