Description

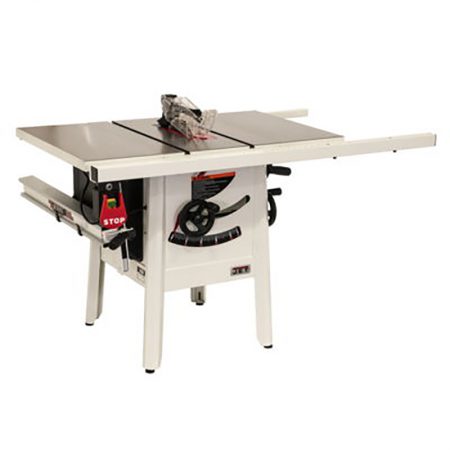

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.
FEATURES
- Newly designed arbor lock to change blades quickly and easily
- Quick release riving knife for hassle free riving knife changes
- Improved dust shroud around blade for greater dust collection
- Convenient, magnetic paddle switch for the safest operation possible
- Innovative single belt design for easier belt tensioning and reduced vibration.
- Motor reset switch conveniently relocated to the power switch, instead of the motor
- Low profile riving knife included
- Redesigned guard for better protection and ease of use
- On board storage for all included accessories
- CSA certified
SPECIFICATIONS
- Style (Type)Contractor
- Blade Diameter (In.)10
- Arbor Diameter (In.)5/8
- Arbor Speed (RPM)4000
- Maximum Depth of Cut (In.)3-1/8
- Maximum Depth of Cut at 45 Degrees (In.)2-1/8
- Maximum Rip Left of Blade (In.)13-1/2
- Maximum Rip Right of Blade (In.)30
- Table in Front of Saw Blade at Maximum Depth of Cut (In.)8.81
- Maximum Diameter of Dado (In.)8
- Maximum Width of Dado (In.)13/16
- Table TypeCast Iron
- Table Height from Floor (In.)34-3/4
- Table Size (L x W) (In.)20 x 27
- Table Size with Extension (L x W) (In.)44 x 27
- Miter Gauge TypeT-Slot with Stops
- Dust Collection Minimum CFM Required (CFM)350
- Dust Port Outside Diameter (In.)4
- Motor Power (HP)1-3/4
- Motor Phase (PH)1
- Motor Voltage (V.)115
- Prewired Voltage (V.)115
- Motor Amps14.8
- Recommended Circuit Size (Amps.)20
Call for pricing (978) 667-1911
