Description
DESCRIPTION

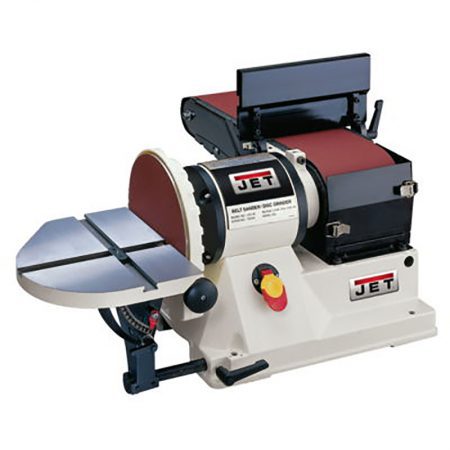

The unique JSG-96 Benchtop Sander combines a 9″ disc and 6″ x 48″ belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint on your bench. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.
FEATURES
- Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
- Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
- Graphite covered steel platen runs cooler increasing machine and belt life
- Specially designed belt guard allows full use of the 6″ belt width and length
- Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
- Quick-lock dust cover allows fast disc changes
- Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc
- Powerful 3/4HP motor easily handles the toughest sanding operations
- Built-in handles for easier portability
SPECIFICATIONS
- Style (Type)Benchtop
- Disc Diameter (In.)9
- Disc Speed (RPM)1725
- Disc Table Tilt (Deg.)10 Up, 45 Down
- Disc Table Size (L x W) (In.)12 x 7-1/2
- Sanding Belt Size (L x W) (In.)48 x 6
- Belt Speed (RPM)2258
- Belt Table Tilt (Deg.)10 Up, 45 Down
- Belt Table Size (L x W) (In.)11 x 5-1/2
- Dust Port Outside Diameter (In.)4
- Motor Power (HP)3/4
- Motor Phase (PH)1
- Motor Voltage (V)115
- Prewired Voltage (V)115
- Motor Amps11
Call for pricing (978) 667-1911
