Description

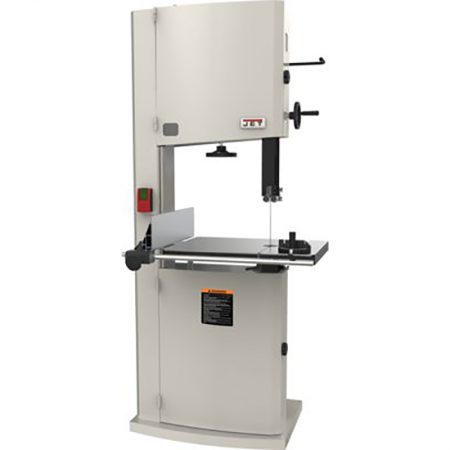

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.
FEATURES
- 16″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4″ dust collection ports catch dust and chips at the source
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
SPECIFICATIONS
- Band Saw Size/Wheel Diameter (In.)20-1/4
- Cutting Capacity Width (In.)20
- Cutting Capacity Height (In.)16
- Blade Length (In.)158
- Blade Speed (SFPM)2530/4850
- Table Size (L x W) (In.)27-1/4 x 20 x 1-5/8
- Blade Width (In.)1″ x 3TPI
- Maximum Saw Blade Width (In.)1-1/2
- Minimum Saw Blade Width (In.)1/8
- Table Tilt (Deg.)-5,45
- Table Height from Floor (In.)37
- Dust Collection Minimum CFM Required (CFM)400
- Dust Port Outside Diameter (In.)4 (x2)
- Motor Power (HP)5
- Motor Phase (PH)1
- Motor Voltage (V)230 onnly
- Motor Amps22
- Recommended Circuit Size (Amps.)40
