Description

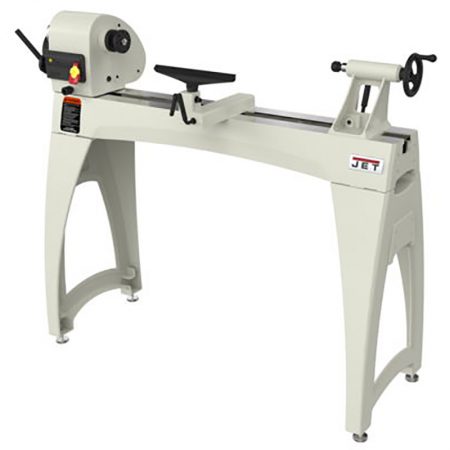

The features you love on the 3520B lathe are now available in a smaller footprint. The PM2020 lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
FEATURES
Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
Set of dead centers which hold a spindle for visual comparison
Redesigned tool rest geometry allows for better chisel movement along the tool rest
Laser etched quill is self-ejecting.
Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
Attached tool caddy allows convenient access to centers, wrenches, etc.
Tailstock has internal storage for additional accessories
Chrome trimmed handwheels are ergonomic for a comfortable feel
Standard Equipment:
2HP TEFC Motor
Safety shield
3″ face plate and face plate wrench
14″ tool rest
Multiple ball-bearing live center
Brass tipped knockout rod
SPECIFICATIONS
Swing Over Bed (In.)
20
Swing Over Tool Rest Base (In.)
17
Distance Between Centers (In.)
20
Headstock Movement
Full Length of Bed
Spindle Bore
5/8
Tailstock Bore
3/8
Spindle Taper
MT-2
Quill Taper
MT-2
Ram Travel Quill Travel
4-1/2
Spindle Threads (In. x TPI)
1-1/4 x 8
Outboard External Threads (In. x TPI)
1-3/16-18 UNC
Spindle Speeds
High 125-3200/Low 50-1200
Speed Range
50-3200
Number of Indexing Positions
48
Centerline of Spindle to Floor (In.)
44 (adjustable)
Outboard Turning
88
Bed Construction
Cast Iron
Motor Power (HP)
2
Motor Phase
3
Motor Voltage (V.)
230 only
Wiring Remarks
VFD will accept 1 or 3 phase power
Motor Current (Amps)
6.2
Recommended Circuit Size (Amps.)
20
